You can make your own light hat, or have someone make it for you. The information is available on the blog. If you are uncertain, fill in the “contact” form and ask.

LED strips

LED strips are great for DIY projects, such as Cossack light hats, lights for helping arthritic fingers, a LED light wrap for back pain and so on.

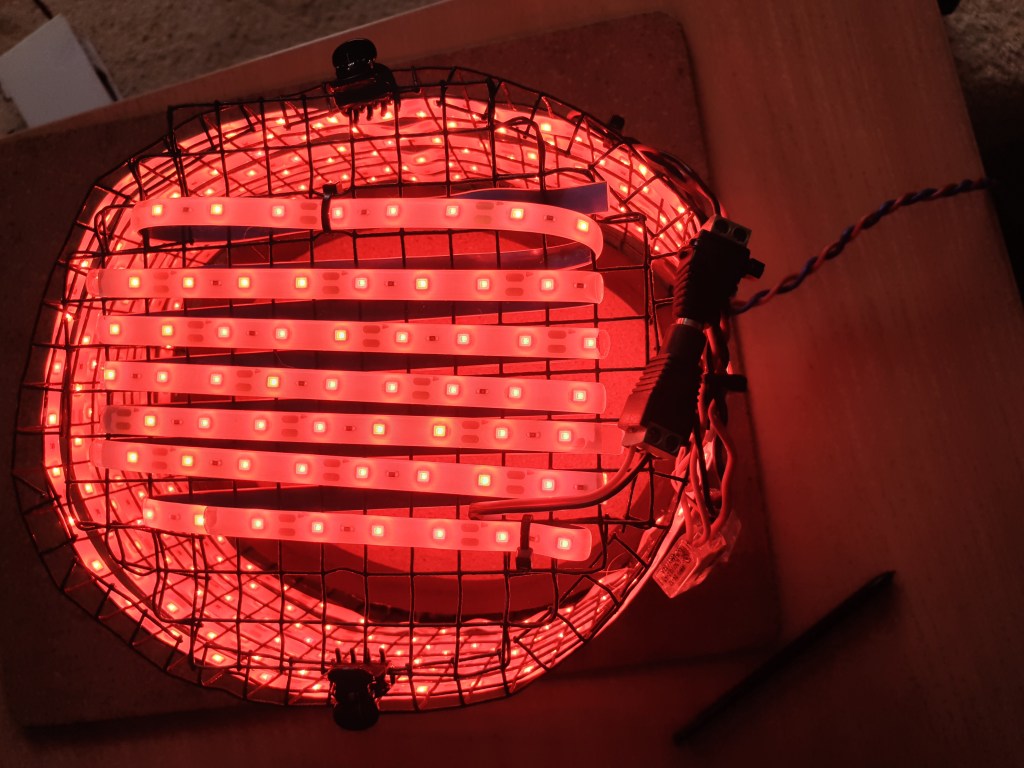

Here’s a photo of a Cossack light device – you can see the LED strip winding around and around the frame.

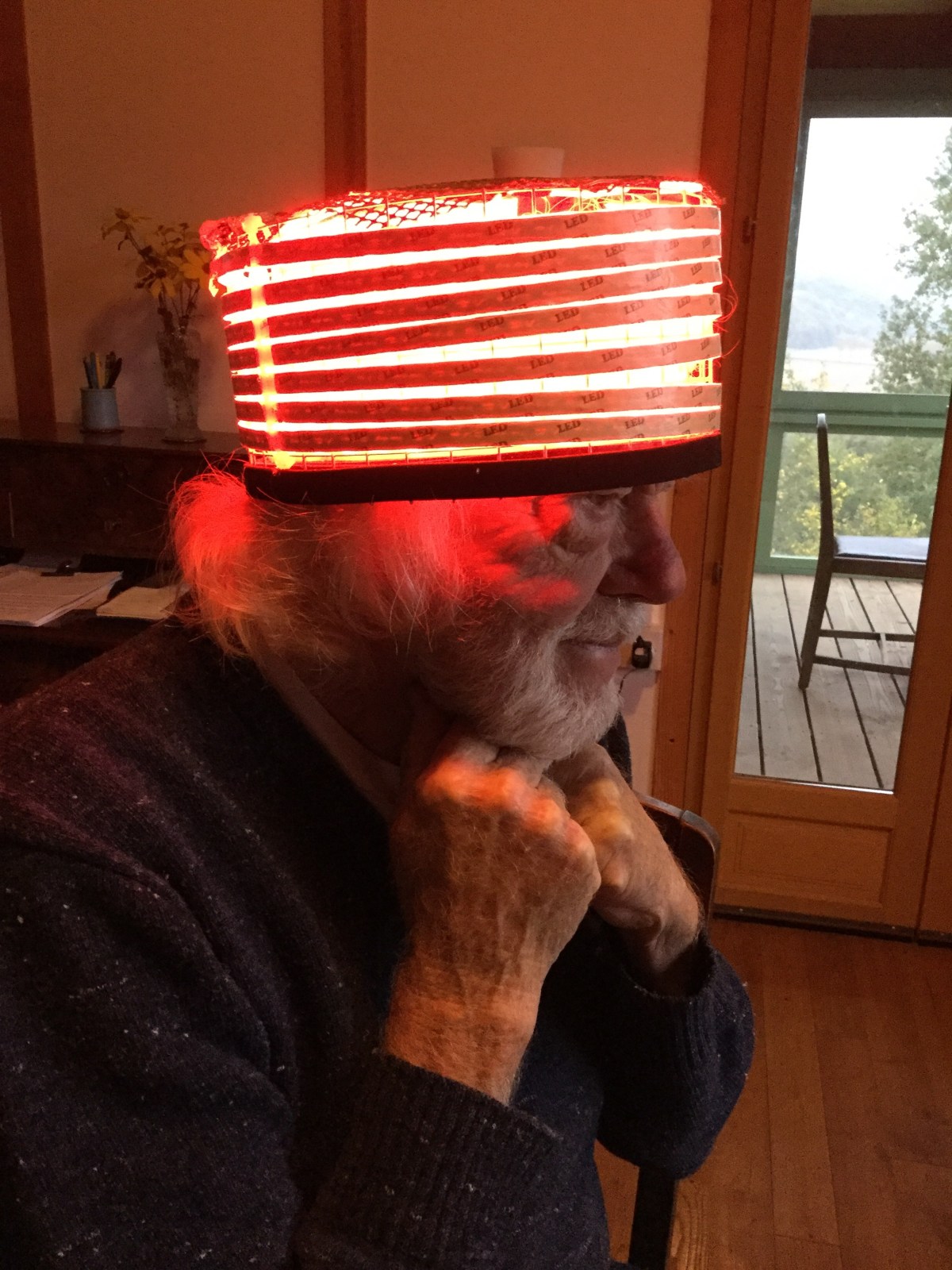

This is a Cossack light hat - the instructions for making this are on the blog. The Cossack uses LED strip - you can see the strip wound around the frame.
The instructions for making a Cossack light hat are on the blog.

LED strips should only be used for DIY projects.

You can make your own light hat using LED strips:

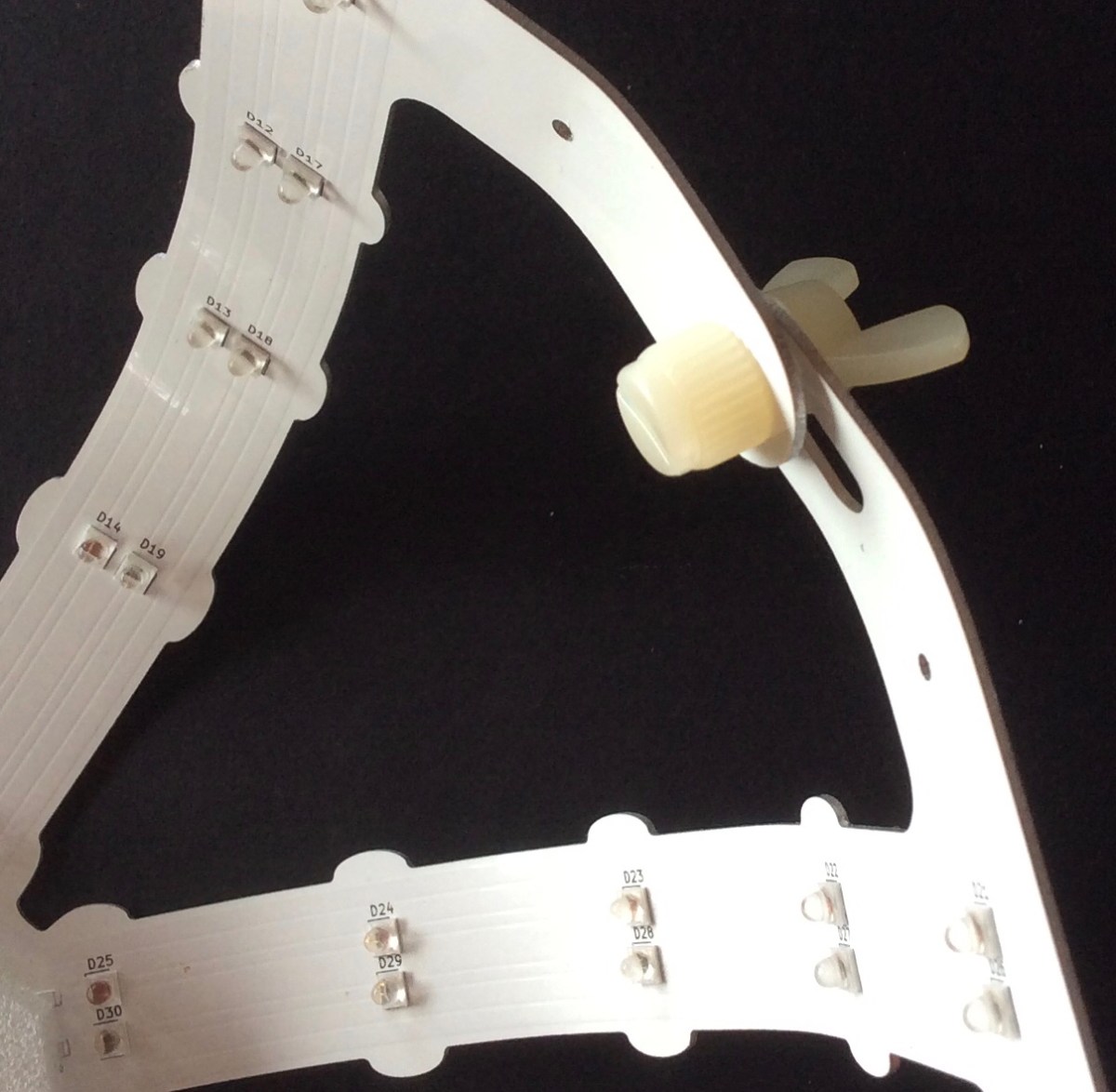

If you are thinking of buying a light device, make sure that it is made with individual LEDs, not a LED strip.

A device with individual LEDs is more likely to last, it will have better heat management, and it is more likely to be value for money.

As an example, a few weeks ago I made a LED strip device for my back. It uses standard gel-covered LED strip – the sewing is a bit weird but it was functional and felt pretty nice on my back after a day in the garden.

When I first made it, all three LED strips worked very happily. But as of yesterday, one of the LED strips decided to stop working part-way along its length. LED strips do that – they just stop lighting up.

There’s not much I can do about the bung LED strip. I’ll continue to use my home-made device on my back for the moment, but if more of the LED strips decide to conk out, I’ll pull it apart and make another.

The lesson is clear, though.

If you are thinking of buying a commercial light device, avoid those made with LED strips.

Near-infrared LED strips

I’ve had a query about 12V near-infrared LED strip, especially 850nm LED strip.

You can see 850nm, but only just! 850nm is at the very edge of the eye’s ability to see. If you turn on the 850nm LED strip in a dark room, you will see a nice pale red glow. It’s red, but to our eyes it seems pretty dim. That’s good, that means it is working.

Continue reading “Near-infrared LED strips”

Case study research – just published

Hot off the press is a peer-reviewed journal article describing the observations of people with Parkinson’s disease using transcranial red and near infrared light hats on a daily basis.

The title of the article is a hoot: The “Buckets”: Early Observations on the Use of Red and Infrared Light Helmets in Parkinson’s Disease Patients.

The authors are: Catherine L. Hamilton, Hala El Khoury, David Hamilton, Frank Nicklason, and John Mitrofanis.

The article is published in: Photobiomodulation, Photomedicine, and Laser Surgery.http://doi.org/10.1089/photob.2019.4663

Here is a link to the abstract, or you can download the full article.

The “Buckets”…Download

Cossack movie update

Make your own Cossack red light hat.

Making the Cossack Hat Frame*

Michael provided additional information for the DIY Cossack movie.

MEASURE THE CIRCUMFERENCE.

Take a generous length of the hat padding being used, and

  • Fit around the head like a head band.
  • Adjust to fit comfortably around the head and stick together with adhesive tape .
  • Don’t cut the foam yet!
  • Mark the join,
  • Add 2cm to make the band a bit looser, then
  • Cut the padding and tape the ends together to form a circle.

Adjust this head band for easy slip-on comfort and  for it to have a jaunty tilt towards the back of head. Once satisfied with this, measure the final length. This is the final basic circumference for the preparation of the wire mesh frame.

MEASURE THE HEIGHT OF THE HAT.

Like the circumference, this will depend on the individual.

Typically, 9 squares deep (=120mm) is a good height and allows for either an elastic suspension, or for some 6mm foam pads stuck to the top.

A simple paper or cardboard pattern helps to determine these dimensions.

  • Cut a paper pattern 150mm high and the above circumference.
  • Mark the 9 square(120mm) position, and
  • Tape the pattern into a hat shape.
  • Check the height to the top of the head, and
  • Cut the paper to the height needed to fit a padded top for the hat.

         * Wire ends are sharp and can cause cuts. So please wear gloves!
